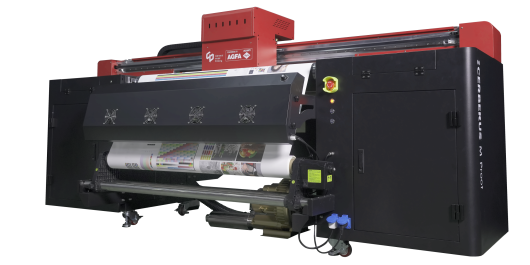

Cerberus M Proof
Efficient production process software with integrated color management and quality control provides a relatively low operational cost for the digital work of short-run lengths. Provide designers a broad space of imagination to explore new business opportunities and business modes.
Cerberus M Proof is suitable for decor design and proofing.Cerberus M Proof is a flexible, value-for-money device that requires only modest power and space and can be used in an ordinary office to help you expand your decorative paper business.
Key benefits
Video
Technical specifications
Model | Cerberus M Proof |
|---|---|
Printing Technology | 3 Industrial Piezoelectric printheads |
Media Types | Digital decor paper,Coated base paper with primer，PP paper,etc. |
Maximum media weight | 30 kg |
Maximum media width | 1270 mm |
Inks | 5-color water-based inks for decor papers (CRYKLk) |
Quality mode（6pass two way） | 9.6 m²/h（calculate with 1250mm width） |
Proof mode（6pass single way） | 5 m²/h（calculate with 1250mm width） |
Dimensions（L × W × H） | 2960 mm*820 mm*1550mm |
Recommended oprating space(including printer) | 3960 mm*2820 mm*1800mm |
Weight | 300kg |
Temperature | 21~28℃ |
Relative Humidity | 40~60%RH，non-condensation |
Electricity | 220V AC+ground |
Power | 2kW |
Dryer | 5.4kW |
Total | 7.4kW |
Software | Agfa Asanti(standard)，Third-party RIPs(Optional) |
Negative Pressure System | Standard |
Temperature Control System | Standard |
Automatic Printhead Maintenance System | Standard |
Simple dryer | Standard |
Single roll printing | Standard |
Two rolls feeding | Standard |
