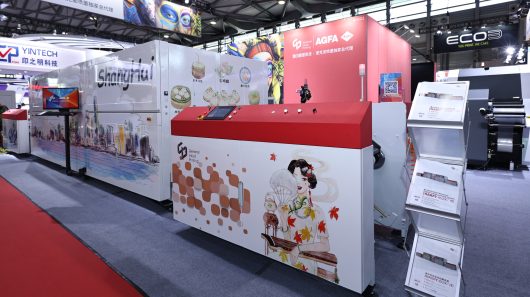

Harpy R520C4 HD

Suitable for printing applications such as publications, documents, digital printing, educational materials and package instructions.

With the latest APPE printing engine and Agfa’s over 30 years of color management and workflow control experience, printing becomes simpler, more precise and more reliable.

Key benefits

Highly flexible paper feeding unit that supports media with feeding width up to 535mm.

Printing speed up to 150m/min.

Adopts a fully integrated Agfa Apogee prepress workflow system.

Resolution up to 1200×1200dpi。

GIP’s water-based pigment inks achieve eco-friendly performance with superior stability.

Each printhead is controlled by a dedicated driver board for greater printing efficiency and easier maintenance.

Video

0:00

Harpy R520C4 HD Series(Chinese)

Harpy R520C4 HD Series(English)

Technical specifications

Model	Harpy R520C4 HD
Print Method	Four-colors;Double-side
Color Configuration	CMYK
Max. Speed	150 m/min
Resolution	1200600dpi/1200900dpi/1200*1200dpi
Registration Accuracy	±0.2 mm
Ink Type	Water-based environmental protection ink
Drying Method	Infrared drying system + Hot wind
Max.Media Width	535 mm
Max.Print Width	535 mm
Media Weight	45 - 165 g/m²
Media Type	Digital printing papers, offset papers, inkjet coated papers, newspaper, coated paper, etc
Max.Rolling Diameter	1200 mm
Mechanical Platform	380V，Max.94kW
Printing System	220V，4 - 8kW
Temperature	22 - 26 ℃
Humidity	40 - 70 % RH，Best: 55%RH
Unwinding System	Standard
Printing System	Standard
Roll Paper Buffer System	Standard
Roll Paper Cropping and Stacking System	Standard
Infrared Drying System	Standard
Roll Paper Guiding System	Standard
Roll Paper De-static and Dust Removal System	Standard
