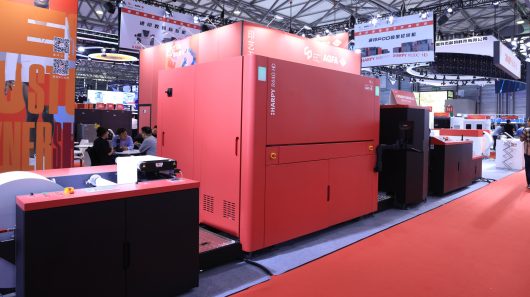

Harpy R440HD Series
Suitable for printing applications such as publications, documents, digital printing, educational materials and package instructions.
With the latest APPE printing engine and Agfa’s over 30 years of color management and workflow control experience, printing becomes simpler, more precise and more reliable.
Key benefits
Video
Technical specifications
Model | Harpy R440 HD | Harpy R440C4 HD |
|---|---|---|
Print Method | Single-color;Double-side | Four-colors;Double-side |
Color Configuration | Single-color | CMYK |
Max. Speed | 100 m/min | 100 m/min |
Resolution | 1200*600dpi/1200*900dpi/1200*1200dpi | 1200*600dpi/1200*900dpi/1200*1200dpi |
Registration Accuracy | ±0.2 mm | ±0.2 mm |
Ink Type | Water-based environmental protection ink | Water-based environmental protection ink |
Drying Method | Infrared drying system + Hot wind | Infrared drying system + Hot wind |
Max.Media Width | 440 mm | 440 mm |
Max.Print Width | 440 mm | 440 mm |
Media Weight | 60 - 165 g/m² | 60 - 165 g/m² |
Media Type | Digital printing papers, offset papers, inkjet coated papers, newspaper, coated paper, etc | Digital printing papers, offset papers, inkjet coated papers, newspaper, coated paper, etc |
Max.Rolling Diameter | 1200 mm | 1200 mm |
Mechanical Platform | 380V，Max.70kW | 380V，Max.115kW |
Printing System | 220V，4kW | 220V，4-8kW |
Temperature | 18 - 26 ℃ | 18 - 26 ℃ |
Humidity | 40 - 70 % RH | 40 - 70 % RH |
Unwinding System | Standard | Standard |
Printing System | Standard | Standard |
Roll Paper Buffer System | Standard | Standard |
Roll Paper Cropping and Stacking System | Standard | Standard |
Infrared Drying System | Standard | Standard |
Roll Paper Guiding System | Standard | Standard |
Roll Paper De-static and Dust Removal System | Standard | Standard |
