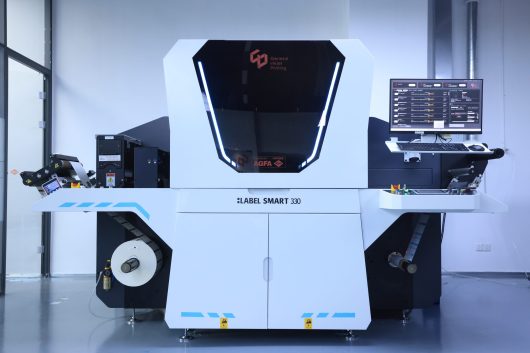

Label Smart Series

Allowing for small-format digital printing and personalized full-color inkjet coding.High cost-effectiveness and reasonable cost of use. Simple and user-friendly printing operation reduces operating costs and brings in higher profits. High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.

Entry-level digital label printer, Label Smart series's four-color plus white color configuration to meet the basic digital label printing needs, for traditional label printing customers to provide short order supplement.

Key benefits

Highly flexible feeding system，suitable for all materials for 110-330mm wide label printing

It can meet the printing requirements at 50m/min high speed.

Insetter tracking sensor achieves accurate secondary surprint, comprehensively solves the problem of printing registration.

Broad color gamut UV ink, vivid colors.

Resolution up to 600 X 1200 dpi

Automatic winding and unwinding system can effectively prevent the substrate from shifting.

Each printhead has its own board to control, makes printhead printing more efficiency and easier to maintain.

LED cold light curing unit, energy saving and high efficiency.

Video

0:00

Label Smart Series（Chinese）

Label Smart Series（English）

Technical specifications

Model	Label Smart 216	Label Smart 330	Label Smart 216S	Label Smart 330S
Printing Technology	Piezoelectric Inkjet	Piezoelectric Inkjet	Piezoelectric Inkjet	Piezoelectric Inkjet
Print Method	One – Side	One – Side	One – Side	One – Side
Color Configuration	CMYK/ CMYK+W/ CMYK+W+W	CMYK/ CMYK+W/ CMYK+W+W	CMYK/ CMYK+W/ CMYK+W+W	CMYK/ CMYK+W/ CMYK+W+W
Number Of Channels	6	6	6	6
Max. Speed	47m/min（600600dpi） 23m/min（6001200dpi）	47m/min（600600dpi） 23m/min（6001200dpi）	50m/min（600600dpi） 25m/min（6001200dpi）	50m/min（600600dpi） 25m/min（6001200dpi）
Resolution	600600dpi/6001200dpi	600600dpi/6001200dpi	600600dpi/6001200dpi	600600dpi/6001200dpi
Ink Type	UV In	UV Ink	UV Ink	UV Ink
Curing Method	UV LED	UV LED	UV LED	UV LED
Media Width	110 - 330 mm	110 - 330 mm	110 - 330 mm	110 - 330 mm
Max. Print Width	214 mm	320 mm	214 mm	320 mm
Media Thickness	50 - 400 μm	50 - 400 μm	50 - 400 μm	50 - 400 μm
Media Type	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Max. Media Roll Diameter	600 mm	600 mm	600 mm	600 mm
Power Supply	380 V	380 V	380 V	380 V
Power	15 kW	18 kW	15 kW	18 kW
Compressed air	＞ 6.5 Mpa	＞ 6.5 Mpa	＞ 6.5 Mpa	＞ 6.5 Mpa
Air consumption	＞ 10 L/min	＞ 10 L/min	＞ 10 L/min	＞ 10 L/min
Operation Temperature	20 - 27 ℃	20 - 27 ℃	20 - 27 ℃	20 - 27 ℃
Operation Humidity	40 - 70 % RH	40 - 70 % RH	40 - 70 % RH	40 - 70 % RH
Skew Adjustment System	Standard	Standard	Standard	Standard
Electrostatic Dust Removal	Standard	Standard	Standard	Standard
Water Cooling System	Standard	Standard	Standard	Standard
